Net weight | 150 kg / 331 lb |
Installed power | 1,5 kW |
Absorbed power | 1 kW |
Compressed air pressure | 6 bar |
Compressed air consumption | max. 4500 nlt/h |

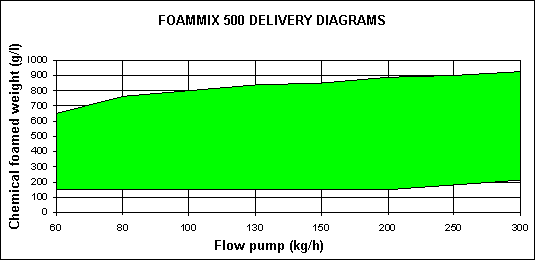

Delivery of foaming chemical | 60 - 300 kg/h |
Specific weight of chemical to be foamed | 0,8 - 1,6 g/cm3 |
Weight of foam | 150 - 900 g/l |
Minimum quantity of chemical to be foamed | 2 litres |
Turbine | double |
Quantity of water required for cleaning | 9 litres |
TURBINE | |

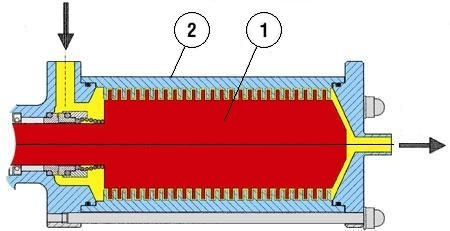

The turbine is composed by a rotating element (1) moved by an electric motor and by a stationary cover element (2) |
